Delivering More Power More Efficiently

- Feature Case IH FPT high-horsepower engines with industry-leading SCR (Selective Catalytic Reduction) Tier 4 emissions control
- SCR is located outside the engine allowing: the Power Plant to be tuned for power and performance and the emissions compliance handled externally
- Includes: high-capacity cooling systems, rugged transmissions and increased horsepower
- Deliver all the performance you’ve ever wanted in a floater

Simple to Service for Maximum Uptime

- Easy access to service and maintenance items allows for quick checks and routine inspections while getting you back into the field sooner
- Frames and booms are designed for maximum strength, durability and unmatched reliability
- These tough machines prove themselves every day, year after year in the field

Quality Application

- From the big booms, big tanks, and efficient plumbing of our 610 Liquid System to the precise co-application flexibility of the 810 Flex-Air™ applicator you can cover more acres, more accurately
- Feature rugged suspension and boom design that ensures efficient, consistent and precise application

Operator Environment

- Titan Series floaters feature the Case IH Surveyor^® Cab to deliver: comfort, convenience and more control over the operator environment

Productive Power

Available in two horsepower ratings, the Titan 40 Series’ high-horsepower diesel engines feature the world-class design innovations of FPT Powertrain Technologies. A sister company of Case IH, FPT is a global engine development leader that makes more than 2.6 million engines every year. Engineered for extraordinary quality and durability, and tested and proven by Case IH engineers, this 8.7-liter engine is designed to meet the tough conditions found in agriculture while delivering optimum fuel efficiency and ease of service. FPT world-class design innovations power all Case IH products over 100 hp, delivering Efficient Power to increase responsiveness and fuel efficiency.

Clean Air Exhaust

- Case IH SCR after-treatment system converts nitrogen oxides into nitrogen and water
- Change is triggered by a non-toxic, odorless mixture called Diesel Exhaust Fluid (DEF)
- Engine design maximizes power and performance, reduces particulate matter

Selective Catalytic Reduction (SCR)

- SCR maximizes horsepower because the system is separate from the engine
- The design leads to better fuel economy and improved engine durability and you still have the flexibility to choose among diesel fuel varieties and grades
- SCR meets stringent Tier 4 B/Final emission standards

More Comfort Means More Acres

When application windows are narrow and every hour in the field counts, operator comfort is no luxury – it’s absolutely essential. Comfortable operators are productive operators and they help boost your bottom line. That’s why Titan Series floaters are equipped to let operators work longer with less fatigue. Ergonomic seating, easy-to-reach controls and an ultra-quiet interior are just a few of the features that help make the most out of long days in the field.

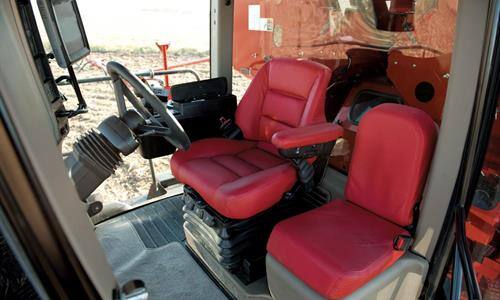

Air-ride Seat

- Adjustable for position, ride firmness and lumbar support
- 40-degree right-hand swivel seat gives you a 180-degree full field vision and less neck strain
- Instructional seat can be folded down when not in use to provide a mobile office with cup holders
- Sufficient room to stretch your legs
- Elevated footrest pegs provide a welcome alternative position
- Luxury cab option: red leather operator and instructional seat and leather wrapped steering wheel
- Carpeted floor mat

Control Switches

- Chassis and application control switches are ergonomically placed
- Attached to operators seat or in the headliner to the right of the operator
- Spreading and spraying controls are located on the control lever for simple one-handed operation
- Cruise control operation is performed using the switches located on the right-hand control console

Surveyor^® Cab

- Four pillar design provides 132 cubic feet of working space
- Opens up the view in every direction
- One-piece curved, tinted, front windshield has more glass than any competitive model
- Sloped glass to reduce glare
- 90 square feet of cab glass for unbelievable visibility
- Low-profile hood helps provide an amazing field of view for operating safety and confidence
- Sunshades keep the operator cool and comfortable
- Pressurized cab to keep the inside air clean and fresh all day

3-Wheel Floaters

Ready to work? So are these floaters. From its solid, durable chassis frame to its robust drivetrain, a Titan 40 Series 3-wheel chassis is designed to work as hard as the rest of your crew during your application windows. For the applicator who needs to stay out in front, both of schedules and the competition, here’s the 3-wheel option that’s second to none.

Durability and Strength

- 4 times the life of earlier designs with high-strength, low-alloy (HSLA) cold-formed rectangular steel tubing
- Continuously welded, not bolted
- Open architecture frame design that allows for better airflow to keep engine running cool and efficient

Power Train Designed for the Application

- 6-speed Allison automatic transmission and 2-speed rear axle
- Optional, factory-installed 2-speed auxiliary transmission doubles the speed range choices
- 4 speed ranges with 6 gears in each range
- Simple rotary dial to choose the appropriate range for particular field conditions and operating speeds
- 3-wheel floaters have a big rear axle rated at 34,000 pounds with wheel end planetaries
- Provides the rugged durability that is required to handle tough terrain and today’s demands

Front Fork Assembly Design

- A large 8-inch shaft diameter at the attachment point and 7 inches at the bearing area
- 1.5 inches more than the closest competitive design
- A 6-degree rake on caster provides the tight turning performance you want from a 3-wheeler

Better Brakes

- Standard on the 3-wheeler is a “Front-Assist” disc brake that uses air over hydraulic actuation to supply one-fourth of the machine’s total braking capability
- Timed braking to let the back brakes engage first for improved stability while stopping

4-Wheel Floaters

The performance and productivity of any floater rests solidly on the structural integrity of its frame. That’s why 4-wheel Titan 40 Series floaters are designed to withstand the most demanding field conditions. These sturdy frames are built of 10 x 4 x 0.375-inch rectangular cross-section steel tubing. And they’re continuously welded, not just bolted together. Welded-in torsion tubes plus top and bottom doublers in key stress areas combine to form a rigid frame that withstands heavy loads and protects the mounted components from field-induced fatigue failures.

Rugged Design

- 4040 floater offers the 340 horsepower engine
- 4540 floater offers the 410 horsepower engine
- Massive rear axle rated at 34,000 pounds with wheel end planetaries and a 2-speed air-shift rear end

Drum Brakes

- Spring applied, air released drum brakes for effective stopping capability
- Front 16.5 x 6-inch shoes with 30 cubic inch chambers
- Rear 16.5 x 5-inch shoes with 36 cubic inch chambers

Leaf-Spring Suspension

- Cushions the ride for operators and components
- Extends service life
- Reduces operator fatigue

Tire Options

- Case IH have several tire options that you can choose from to best fit your needs and floatation requirements
- Bias Ply and Radial construction
- Stubble guard front tire option

Optimum Control Means Maximum Efficiency

Thoughtfully designed, well laid-out controls let operators make the most of every hour in the field. Advanced control technologies increase accuracy, minimize over- or under-applications, and get every bit of value from each drop or granule you apply. Titan Series floater control options give you a range of ways to get the very most out of your floater, and your application windows.

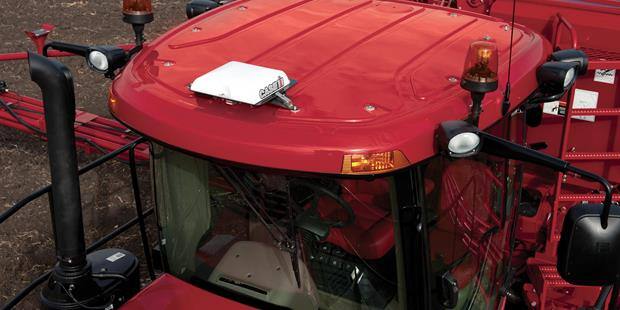

AFS 372 Receiver

- Optional upgrade for the ultimate in automated accuracy
- Provides precise signals for differential correction

AFS Pro 700

- Optional color display
- Observe and control both guidance functions and application rates on the 610 Liquid System
- Track ground speed, acres covered and other variables
- Integrates with AFS software to store, view and manage precision farming data

Viper 4

- 12.1-inch Touch-Screen Interface
- Displays: boom status, application rate and pressure readings
- Functions as a stand-alone rate controller or it can be an integral part of guidance or mapping systems
- Available for all versions of the 810 Flex-Air Applicator and 610 Liquid System

SCS 5000

- Optional controller
- Provides a quick visual check of spraying and spreading functions
- Boom section switch positions allows operators to focus their attention on the field
- Can be used with the 610 Liquid System and single bin 810 Flex-Air applicators

Get More Work From the Work Day

At Case IH, we make “maximum uptime” one of the pillars of every product we offer. Simply put, that means designing and building equipment that optimizes time in the field every day of their long, productive life. One important way to do that is to make routine maintenance as easy, quick and trouble-free as possible. This maximizes uptime two different ways. It gets your machine out in the field and productive as quickly as possible every day. And because it makes service so convenient, it increases the chance that nothing gets skipped, and that means a machine that runs better, longer.

Maximum Uptime

- Easy open access for simple fluid checks
- Trouble-free access to batteries, tanks and engine components
- Maximum uptime
- From top to bottom, these machines are engineered for reliable, season-long performance, season after season

Ground Level Service Access

- Swing-out compartments on each side (3-Wheel)
- Ground level service access to the air tanks
- Compressed air on the left
- Batteries on the right
- Removable electrical disconnect key can be used to shut down the electrical system

3-Wheel Floater Swing-Out Steps

- Swing-steps located on the left-hand side
- Allow access to the engine for routine maintenance and fluid checks
- Provide access to air system, tanks and valves
- Air hose can be attached to a quick release air chuck
- Used to inflate tires and clean the cooler and radiator

Wide Open, Easy Access

- The front-tilt hood opens easily for access to: the engine, coolers and daily checkpoints
- The swing-out grill (available on Titan 4040, 4540, 4030 and 4530 models) opens wide to provide hassle-free access to clean the radiator and cooling system

Titan Lighting Options

- Standard lighting includes halogen lightning in the front hood, cab and service center/booms
- LED amber turn signals and red tail lights
- Optional HID lighting package replaces the halogen work lights in the hood (adds four lights to the rear of the cab roof)
- Single or dual beacon lights available
