Precision Air 2355_Precision

PRECISION AIR™ Air Carts

Get superior air seeding, electric drive metering and individual section control with Case IH Air Carts. Tire packages available for ground pressures as low as 14 psi and single-or double-shoot distribution.

Interested in this Precision Air™ Air Cart unit but need some financing? Message us TODAY to speak with one of our financing specialists.

Financing Options

Maximize the potential of your seed and fertilizer

Make the most of short seeding windows with the Precision Air 5 series air carts. Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps. Customizable configurations provide the versatility for a variety of crops and fertilizers, while our exclusive metering and seed delivery systems offer greater efficiency.



Maximize the potential of your seed and fertilizer

Tank Design

Easy Accessibility Meets Increased Seeding Capacity
  • Capacity
  • Accessibility
  • Fill System

Increased Productivity

  • Tank capacities range from 350 to 950 bushels and are available in tank configurations with two or three primary compartments
  • Precision Air 5 Series’ tanks provide up to 39% more product carrying capacity

Tank Sensors

  • A seed level sensor is standard in each tank and informs the operator through the AFS Pro 700 when the seed level is low.
  • An optional ultrasonic bin level sensor can show tank level at all times.

Auxillary Tank Option

  • Auxillary Tank Option A fourth steel auxiliary tank option is available for efficient carrying and application of small, low rate crops like canola or micro-nutrients.
  • This option utilizes a pneumatic fill system to reduce seed damage and can be loaded at ground level

Efficiency and Flexibility

  • Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps.
  • Different configurations provide the versatility for a variety of crops and fertilizers

Lid and Opening

  • The tank design offers large tank openings, easy to grab latch handles and low profile lids.
  • These features provide unobstructed movement for the conveyor or auger spout for less seed spillage.

Tank Ladder

  • Internal tank ladders provide convenient, easy access to inspect inside each tank.
  • An extra step bar and removable grab post make getting into and out of the tank easier.

Staircase and Platform

  • The durable, spring-loaded folding staircase allows quick access to the tank platform and features solid handrails and slip-resistant treads.
  • The staircase brings you to a large and secure platform for easy access to the tank openings, allowing you to safely monitor the auger and tank fill levels.
  • Platform railings fold down without tools for easy transportation and storage.

Standard Auger

  • The standard 10-inch-diameter auger has a longer hopper at the bottom for improved access under trucks during seed or fertilizer transfer.
  • This auger option is standard on 2355, 3445, 4465 models, offers mechanical maneuvering and a 29 bu./min capacity

Deluxe Auger

  • The auger’s wireless remote control allows effortless starting and stopping of the auger for easier auger positioning to all tank openings, without having to move the hopper.
  • The deluxe auger system is optional on the Precision Air 3445 and 4465 and standard on the 3555 and 4585

Auxillary Tank Fill

  • The auxiliary tank fill system reduces seed damage, provides a smaller tank for smaller/low rate crop types, and can be loaded at ground-level
  • A ground-level side door opens to access inside of the aux tank for inspection and cleanout.

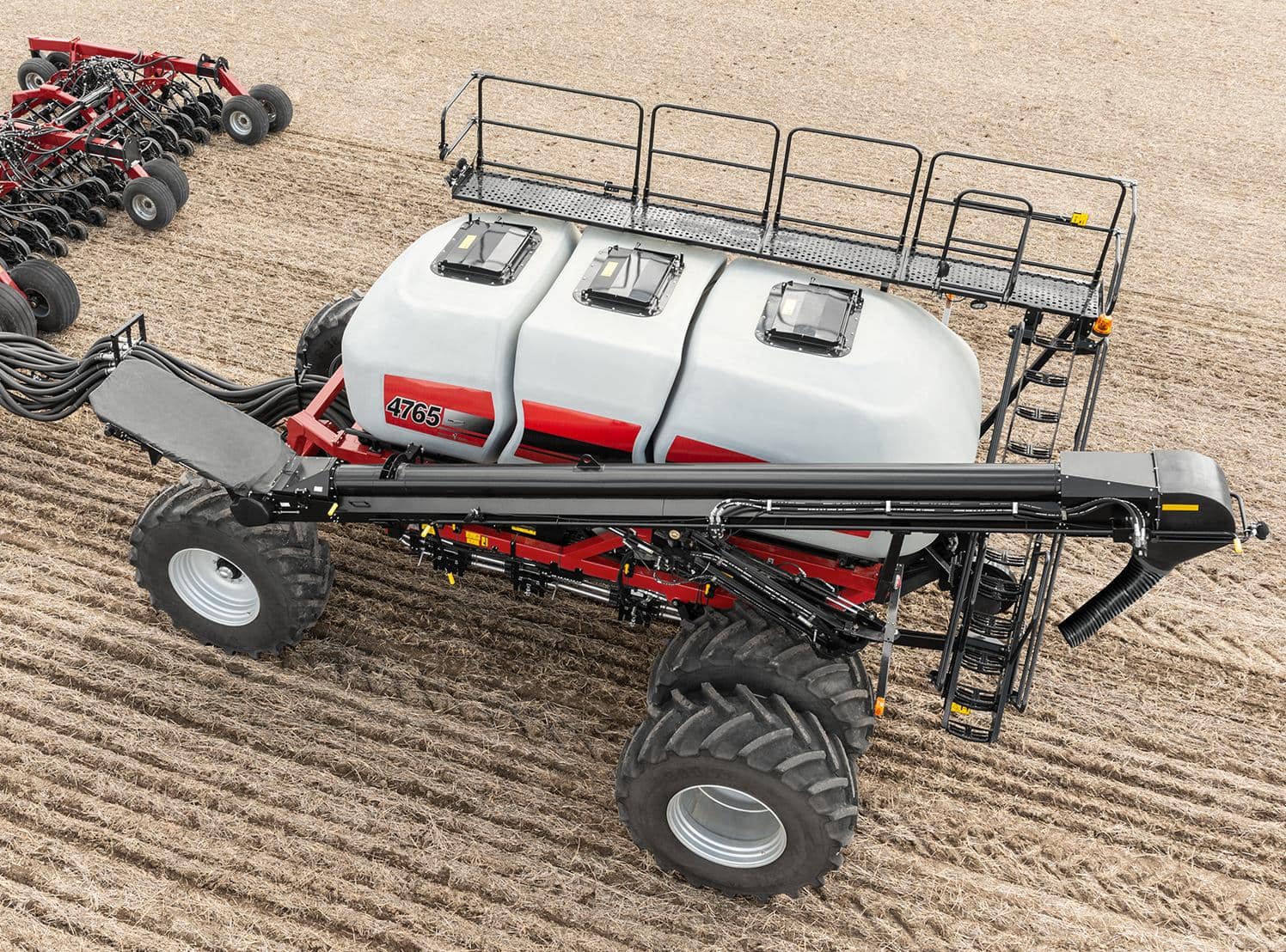

Conveyor

  • The conveyor system provides the same remote control operation as the deluxe auger.
  • Patented cam linkage automatically keeps the spout centered over the tank lids.
  • The conveyor system is standard on the Precision Air 4765 and 4955 and optional on the 3555 and 4585 models.

Operator Environment

Greater Control From in the Cab

Greater Control From in the Cab

This series of air carts is developed to work with the Case IH AFS Pro 700 control center. This 10.4 in (26 cm) touchscreen enables easy monitoring and operation from inside the cab:

  • Application rate and rate control
  • Tank bin level and in-tank camera feed
  • Ladder position and other warnings.
  • Section control system

Section Control System

Precise Control and Visibility Over Your Application

Precise Control and Visibility Over Your Application

The Case IH AccuSection™ modular section control system can improve your operations with precise and accurate rate control and adjustment. AccuSection technology uses individual electronic meter drives to provide primary run control on a per meter basis. Avoid overseeding and overfertilizing with costly overlaps and simply change your setup for different operations.

Frame Construction

Rugged and Manueverable Frame Construction

PrecisionAirCarts_frame1

Frame Design

A bridge frame construction delivers strength and maneuverability. With both narrow and wide configurations, the frame provides good flotation and stability
PrecisionAirCarts_frame2

Tires

Tow-Between and Tow-Behind tire flotation packages are designed to keep going in the toughest conditions and reduce compaction for higher yields.
PrecisionAirCarts_Frame3

Hitch

The air cart’s hitch options allow it to be towed directly between your tractor and drill or behind your drill for better visibility

Cartridges and Rollers

Flexibility That Makes Seeding Simple

Flexibility That Makes Seeding Simple

Three different types of color-coded cartridges (narrow, half-width, full-width) and rollers (fine, medium, coarse) give you the ability to plant almost any seed or apply fertilizer.

The variety of cartridge and roller combinations are interchangeable which lets you tailor the set-up to lower rates when splitting one product from multi tanks. The air cart design also makes the cartridges easy to remove, change and service.
